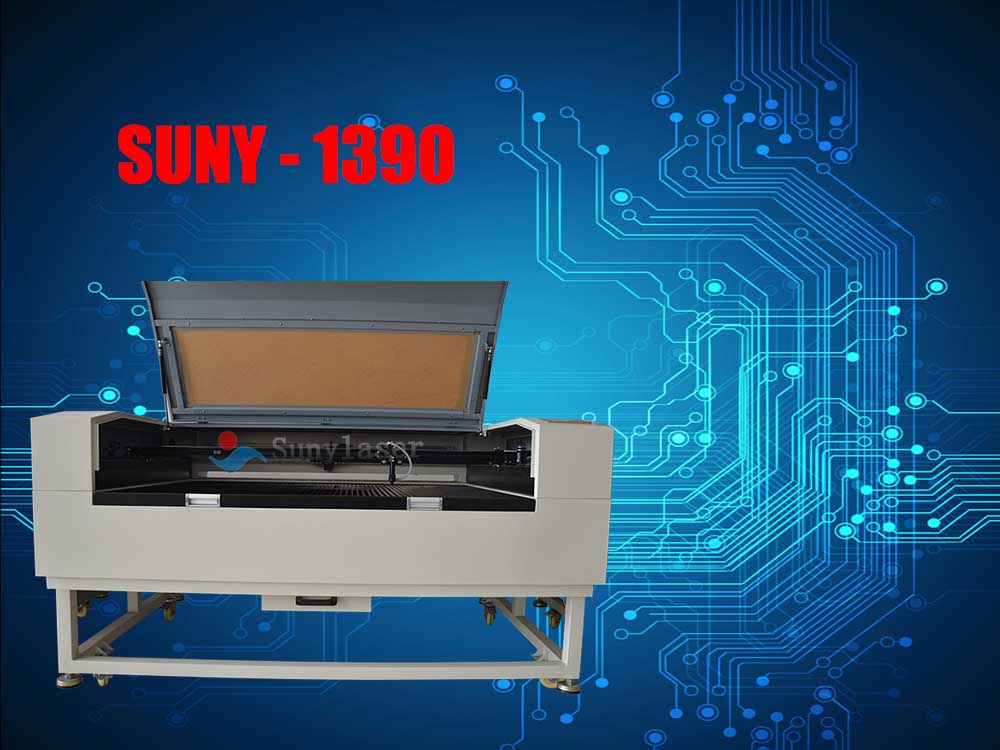

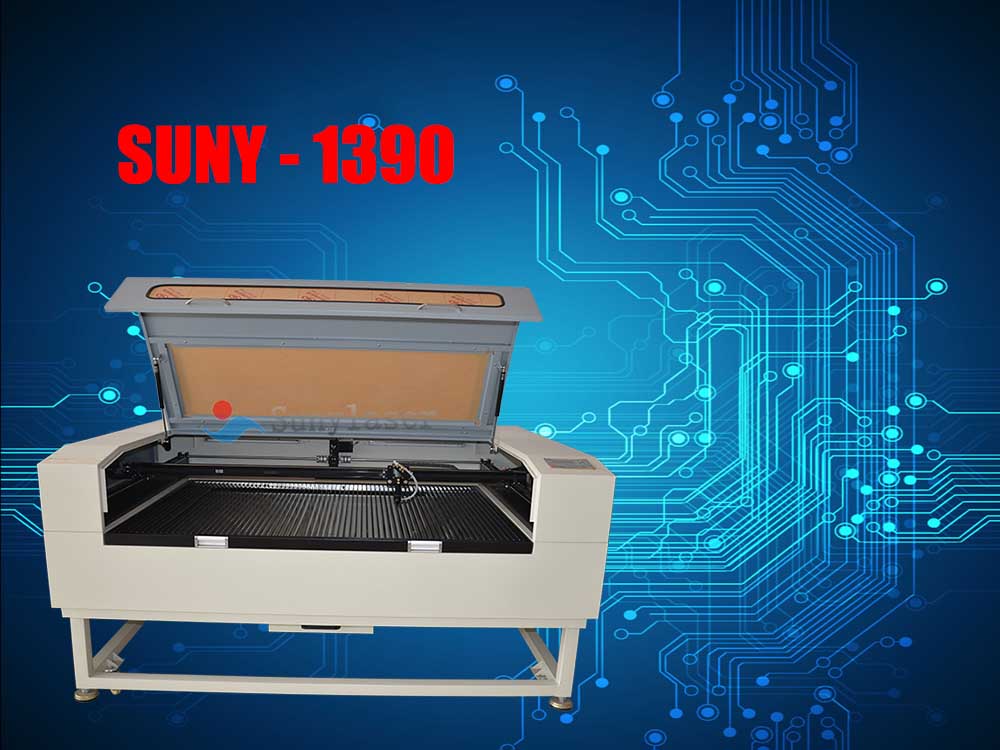

Suny-1390 laser engraving machine
2016-03-25
- Introduction
- Configure
- Characteristic
- Parameter
- Material
- Industry
- 1390 laser engraving machine is a specialized crop industries for the design of aircraft, mainly speed, high precision, high power. 1390 laser engraving machine adopts imported from South Korea six balanced linear guide, even if the speed is reached soon, it will not affect the effect and dynamical systems with three-phase stepper driving system, using DSP digital control technology, USB2.0 high speed data transmission, support u disk download data, to achieve full offline, can realize a computer support numerous sets of laser machine, greatly save cost for customers, Xu Yang C series laser machine software by Xu Yang the latest operating system SUNYLASERSOFT software, the operation is flexible and convenient and humanized, Xu Yang C series laser machine its widely application in leather garment, shoe cap, hot drilling template production, acrylic sheet, crafts and advertising crystal industry.
- A. germanyimported fully stepper motor and drive system
B.SUNYLASER control system
C. imported six balanced linear guide
D. dual transmission of USB2.0
E. Chinese LCD, Humanity button control panel
F. laser made (80/100/120/130/150/170) matching
G. optical system uses laser Singapore imports all lenses
H. high strength stainless steel honeycomb base plate
I. chassis integration structure
J. supports U disk download data
- 1 cut optimal cutting path, the shortest path can work, save time, improve work efficiency.
2 Chinese large screen LCD display, users can randomly access to stored documents, user-friendly operation convenient.
3. System transfer graphics data, can be a simple layout editor (such as zoom, rotate, copy etc.).
4 can be layered output data, each layer can be defined independently of the output power, output speed, laser mode (engraving, cutting, etc.), and the definition of parameters for each layer automatically saved.
5 images can be carved, the vector map to draw lines, cutting and engraving, and you can set the accuracy of carving.
6.USB data transmission, but also U disk operation, easy to operate, fast.
Laser type Domestic CO2 laser laser power 80W/100W/120W/130W/150W/170W(Matching) Working area 1300*900mm Engraving speed 0-1500mm/s Cutting speed 0-800mm/s Repeat accuracy ±0.05mm Motion system CNC control system Cooling mode Forced water cooling and protection system working voltage 220±10% 50HZ Power 1250W working temperature 0℃-45℃ Working humidity 5%-95% control software Genuine sunylaser software Support format BMP,PLT,AI,DXF,DST Outline dimension 1850*1390*1105（mm） Weight 310KG
This product is suitable for wood, paper, leather, cloth, organic glass, epoxy resin, acrylic, wool, plastic, rubber, ceramic, crystal, jade, bamboo products, such as non metal materials.
- This machine is suitable for leather garment, cloth toys, computer embroidery and clipping, electronic and electrical appliances, clothing the drilling template, model, arts and crafts, advertisement decoration, printing and packaging, paper products, such as industry.
